Here is the new product (3H-IR14)

４ features of 3H sensor series

1

Compact & lightweight

Minimum functions necessary with easy insulation. Slim body with a thickness of 28.5mm.

HR94D series

HR94D series

3H-IR14

3H-IR14

【Sensor Dimensions】

210mm (W) 210mm (W)
65mm (H) 59mm (H)
30mm (D) 28.5mm (D)
2

Be available to adjust from 1st to 4th row

It is available to adjust from 1st to 4th row by Dip switch setting.

SIDE VIEW(DEPTH ADJUSTMENT)

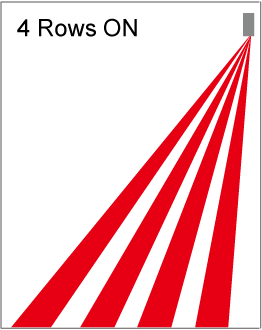

4 Rows ON

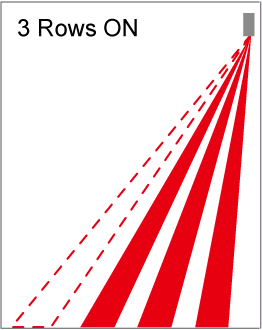

3 Rows ON

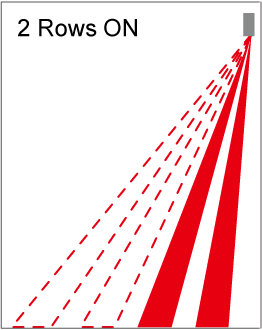

2 Rows ON

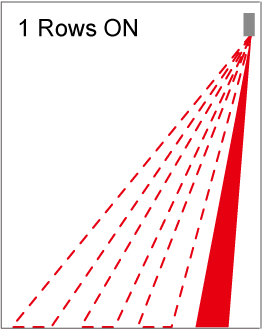

1 Rows ON
3

Simple mounting

It is easy to install by easy setting.

4

High-density detecting spot

8x4 in a high-density detection spot avoid "detection omission".

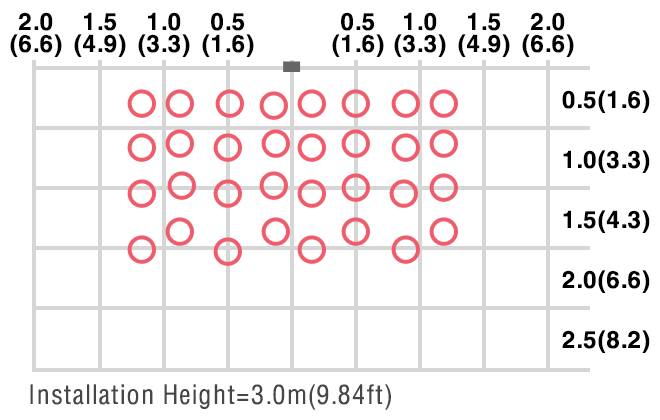

PLAN VIEW(MAX.)
PLAN VIEW(MAX.)

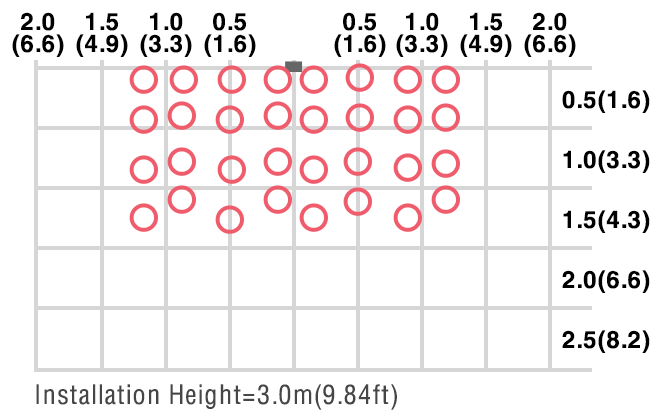

PLAN VIEW(MIN.)
PLAN VIEW(MIN.)

Comparison of 3H and HR94D series

can see in the scroll.

Product Type HR94D HR942D 3H-IR14
HR94D HR942D 3H-IR14

Detecttion Area

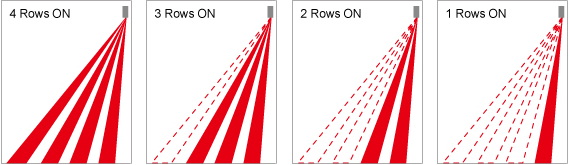

 4 Rows ON 2 Rows ON 4 Rows ON, 3 Rows ON, 2 Rows ON, 1 Rows ON

Spot

4rows x
8spots

4rows x 8spots

2rows x
8spots

2rows x 8spots

1 ~ 4rows x 8spots
Changeable spot rows

1 ~ 4rows x 8spots Changeable spot rows

Others





Smallest combined door activation and safety sensor on the market
Accurately adjustable detection area reduces false door activations
