Newly developed for indutrial door with infrared and micorwave.

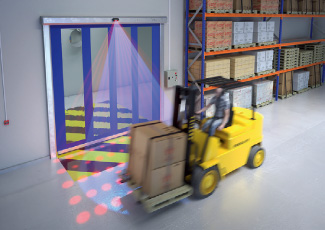

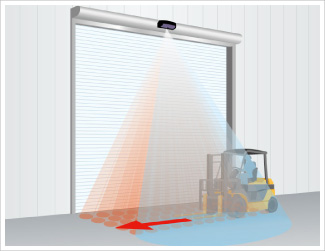

Cross traffic function can save energy.
Combined Sensor

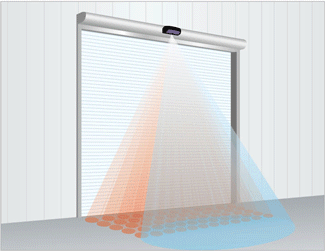

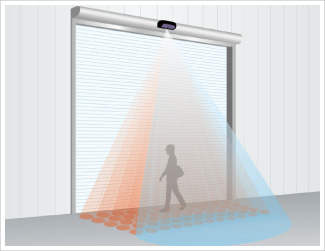

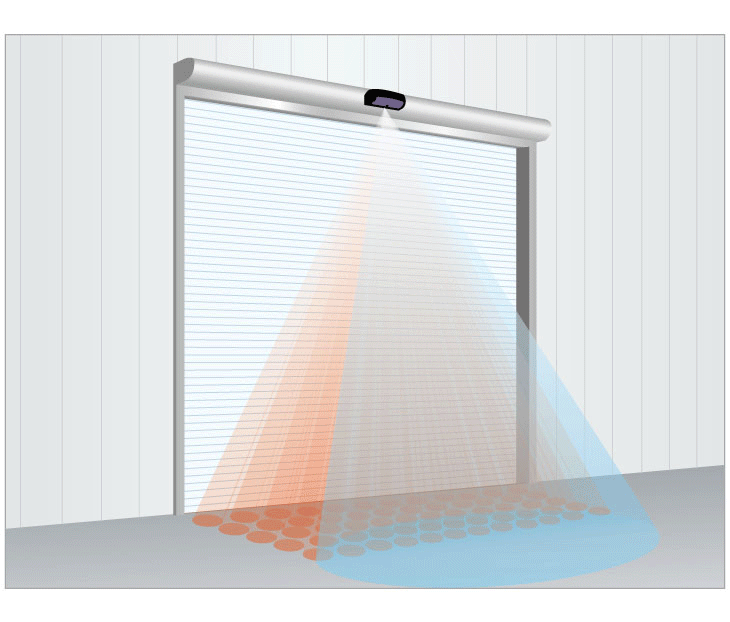

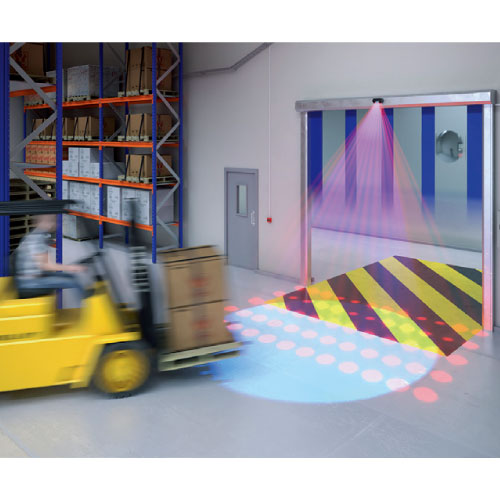

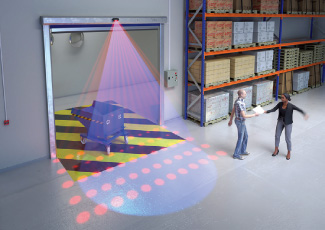

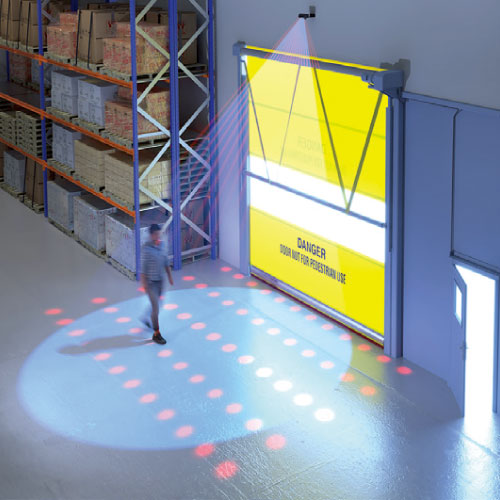

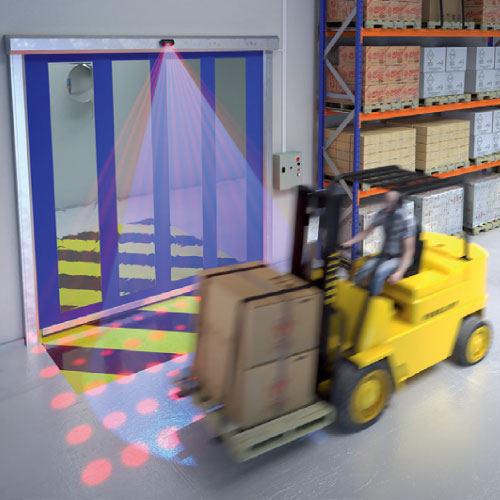

Combined technology sensors look to capitalise on the merits of both infrared and microwave technology. Microwave allows for the detection of a fast moving traffic and Infrared can detect static presence.
Useful functions
Location
can see in the scroll.

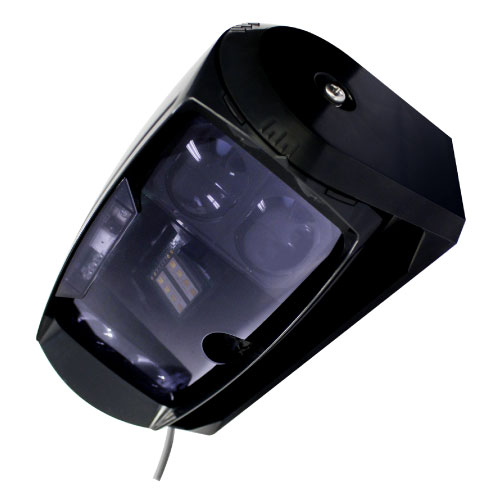

Model | KABUTO Wide Industrial Door Infrared + Microwave Sensor | |
---|---|---|
Detection Method | Microwave Motion Detection K-Band 24.15GHz + Active Infrared Reflection | |
Installation Height | 6.5m (21.3ft) Max | |
Frequency | 4 Frequencies | |
Presence Timer | 30sec / 1,2,5,10,20mins / 1,2hrs / ∞ | |
Power Supply | AC/DC12 ~ 24V ±10% 50/60Hz | |
Power Consumption | AC12V : 2.5VA Max, AC24V : 3.3VA Max DC12V : 150mA Max, DC24V : 80mA Max |
|
Output 1 | Infrared | Opto Relay Non Pole Voltage: 48VDC Max. Current : 300mA Max. (Resistance Load) |
Output 2 | Microwave | Opto Relay Non Pole Voltage: 48VDC Max. Current : 300mA Max. (Resistance Load) |
Output Holding Time | Output 1 : Approx. 0.5s, Output 2 : Approx. 0.5s | |
Response Time | Active Infrared : Approx. 0.25s, Microwave : Approx. 0.1s | |
Operating Temperature | -20°C ~ +60°C, (-4°F ~ +140°F) | |
Operating Humidity | Below 80% | |
IP Rating | IP65 | |

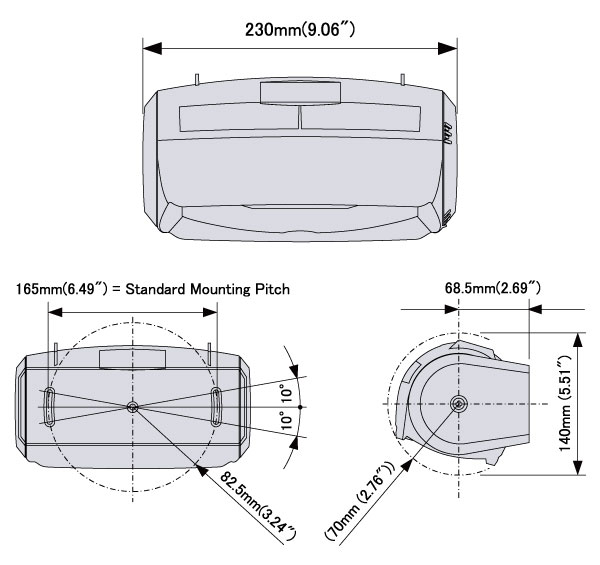

Sensor Dimensions | 230mm (W), 140mm (H), 140mm (D) | |
Weight | Approx. 1,300g (2.87 lbs) | |
Color | BL: Black | |
Accessories Provided | Mounting Screw 3pcs, Installation Instruction Remote Control “ KABUTO-RC ” sold separately |
