HR400-IND

TOP > TOP > Products > Industrial Door > HR400-IND

Wide Industrial Door Activation + Safety
HR400-IND

Industrial door activation combined with static presence detection safety technology at mounting heights of up to 4.7m.

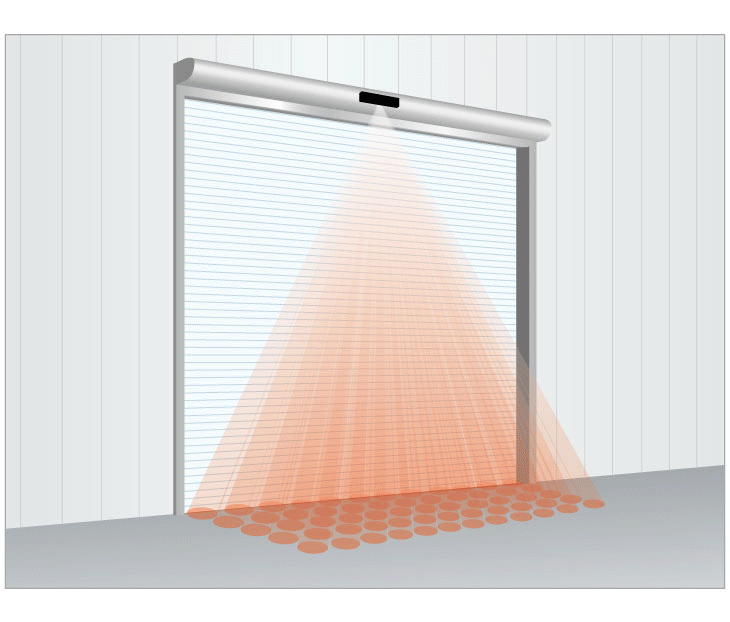

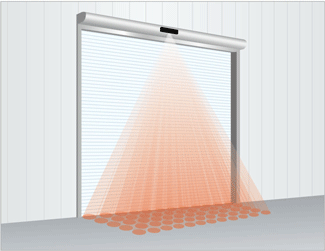

HR400-IND_Technologies

Active Infrared Sensor

Active Infrared sensors take a snap shot of the reflection levels from the ground. Any change in the properties of the reflected wave will indicate that a person or object is in the detection area.

Useful functions
Location

Click here to learn
more about icons
  • Infrared
  • Doorway Monitoring
  • High Density Area
  • Wide Area
  • High Mounting
  • Presence Detetion
  • Full Color LED
  • Energy Efficiency
  • Snow Mode
  • Self Diagnosis
  • Waterproof
  • Direction Detection
  • Activation + Safety
  • Environmental
  • Factories
  • Office Buildings
  • Entertainment

Features

6m wide x 4m deep detection area ensures timely detection of fast moving traffic approaching all types of industrial door

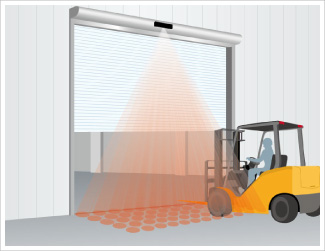

Timely Door Opening

  • Large adjustable detection area ensures timely door opening
HR400-IND_Timely Door Opening
HR400-IND_Timely Door Opening

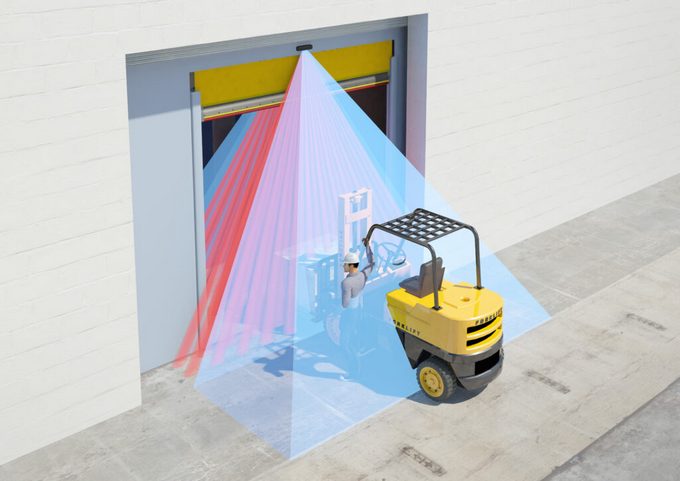

Optimize Pedestrian Safety

  • High density infrared safety curtain protects pedestrians from dangerous door closures
HR400-IND_Optimize Pedestrian Safety

Eliminate Door/Goods Damage

  • left in the door close zone

Reduce Building Energy Loss

  • Uni-directional detection technology reduces building energy losses by as much as 20%

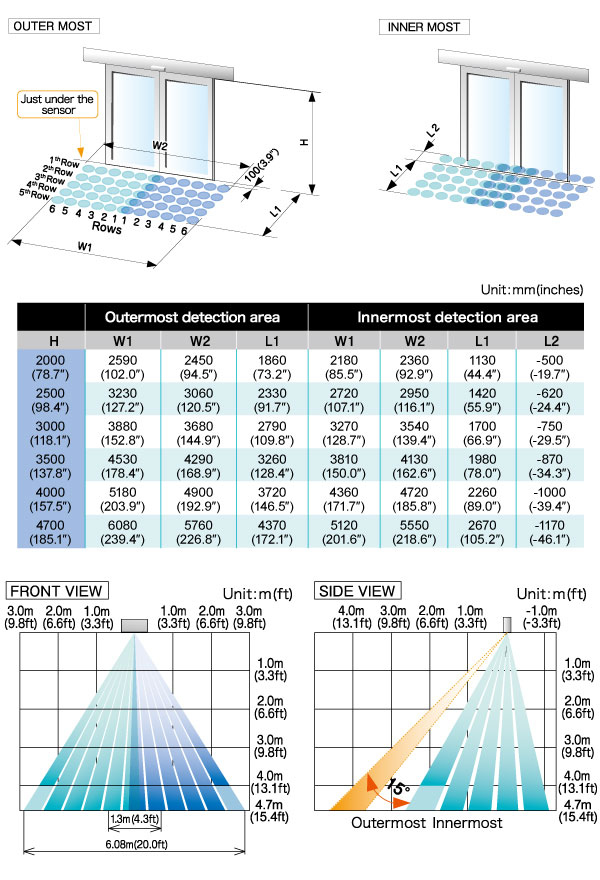

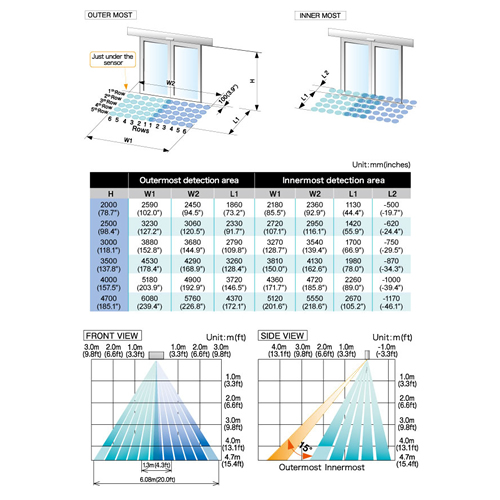

Detection Area

Detection Area

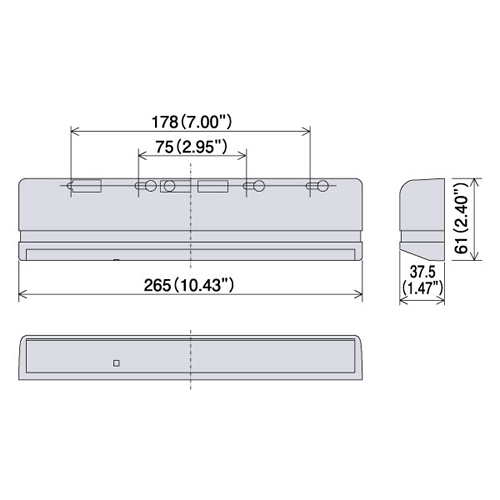

External Dimensions [mm(inches")]

External Dimensions

Specifications

can see in the scroll.

Model HR400-IND Wide Industrial Door Activation + Safety
Detection Method Active Infrared Detection
Installation Height 4.7m (15.5ft) Max
Sensitivity Adjustment Available (Potentiometer)
Depth Adjustment Angle : Unit 0° ~ +15° (Depth Adjustment Screw Setting)
Row : R2 ~ R5 (Dip Switch)
Width Adjustment Detection Width Setting : Left & Right each 6rows / 4rows / 2rows (Dip Switch for Left & Right each)
Detection Width Movement : Left & Right each 1 row movement (Width Adjustment Knob for each Left & Right)
Frequency 4 Frequencies (Dip Switch)
Presence Timer 2s / 60s / 10min / ∞
Monitor Mode Normal / Snow1 / Snow2 / Snow3 (Dip Switch)
Doorway Learn ON / OFF (Dip Switch)
Direction Detection ON / OFF (Dip Switch)
LED Indication Standby : Green
Doorway Learning : Flashing Green
Detecting : Red
Door Hunting : Orange
Indicates a change of dip switch settings or sensitivity volume : Flashing Orange
Internal Sensor Error : Flashing Green/Red
Power Supply AC/DC 12 ~ 24V ±10%
Power Consumption AC12V : 2.5VA Max, AC24V : 2.5VA Max
DC12V : 140mA Max, DC24V : 65mA Max
Output Form 1C Relay DC 50V, 0.1A (Resistance Load)
Output Holding Time Approx. 0.5s
Response Time Approx. 0.1s
Operating Temperature -20°C ~ +60°C, (-4°F ~ +140°F)
Operating Humidity Below 80%
IP Rating IP54
Sensor Dimensions 265mm (W), 61mm (H), 37.5mm (D)
Weight Approx. 290g (0.64 lbs)

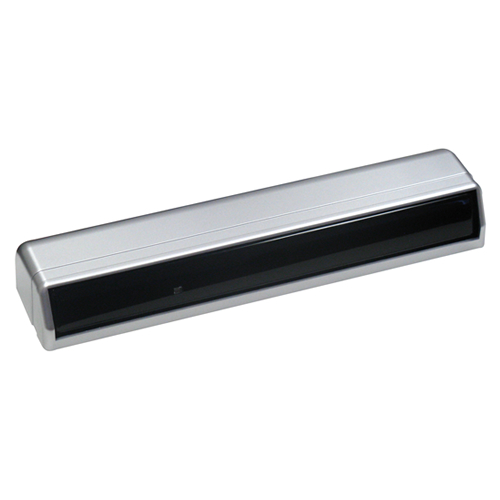

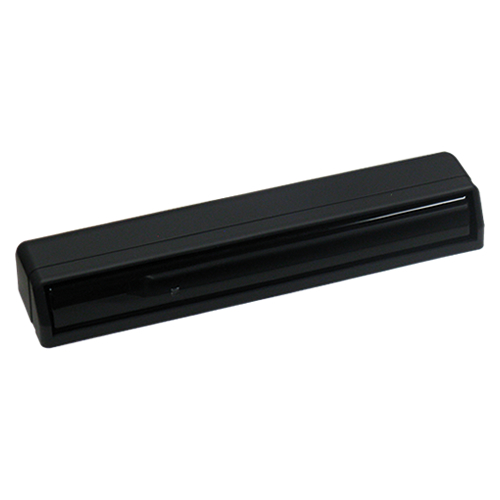

Color S : Silver, BL : Black
Accessories Provided Cable, Mounting Screws 2pcs, Mounting Template, Installation Instructions
