SSS-5
Full Swing Door Safety with only 1 PCB unit
SSS-5 (EN16005)
The first automatic swing door safety sensor to offer full door safety with just one PCB unit.
＊EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.
Active Infrared Sensor

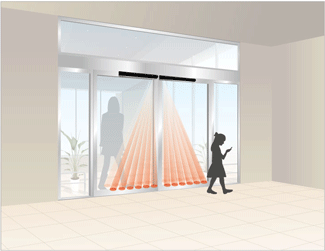

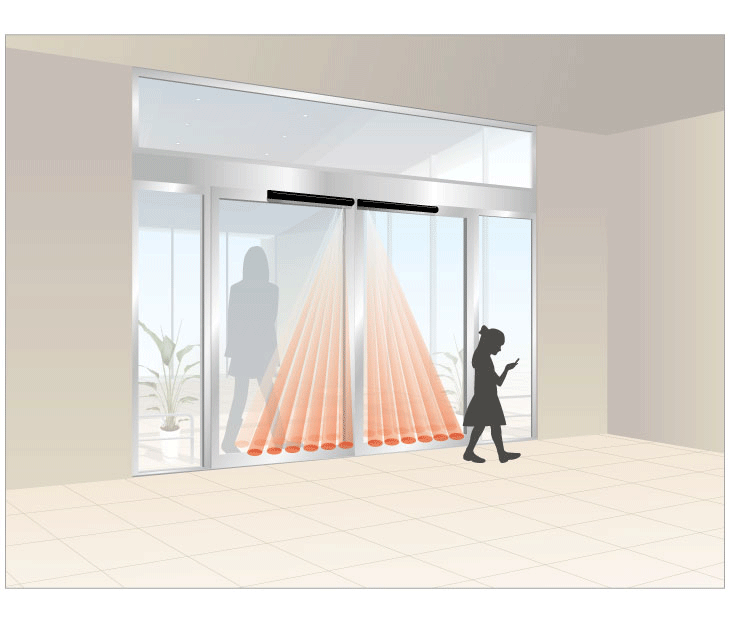

Active Infrared sensors take a snap shot of the reflection levels from the ground. Any change in the properties of the reflected wave will indicate that a person or object is in the detection area.
Useful functions
Location
more about icons
Features
Six spot infrared safety curtain with 1 PCB unit
Safety beams can be focused very close to the ground for maximum safety
Externally and Internally monitored safety system
Maximise Pedestrian Safety

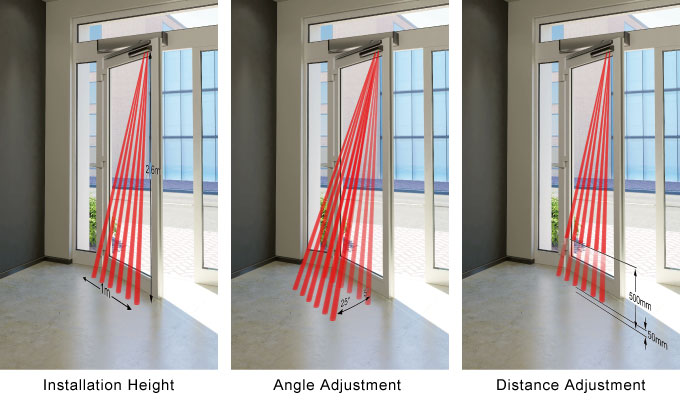

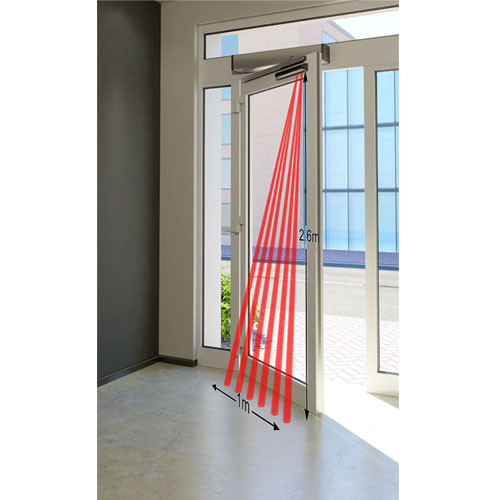

- Only 1 PCB unit is required to provide 800 - 1,000mm of safety coverage along the swing door width
Save on Costs
- No need to use 2 PCB units in one sensor housing to ensure compliance with EN16005
Reduce Installation Times
- Removable wiring terminal block and push button detection distance settings significantly reduces on-site installation time
Strong & Robust
- Solid, tough sensor body design not susceptible to vandalism or damage during installation
Performance Reliability
- The SSS-5 performs reliably on all floor surfaces and reflective environments
＊EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.

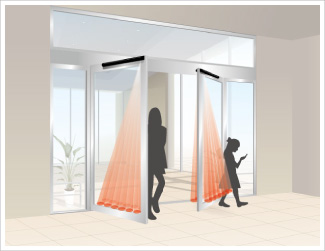

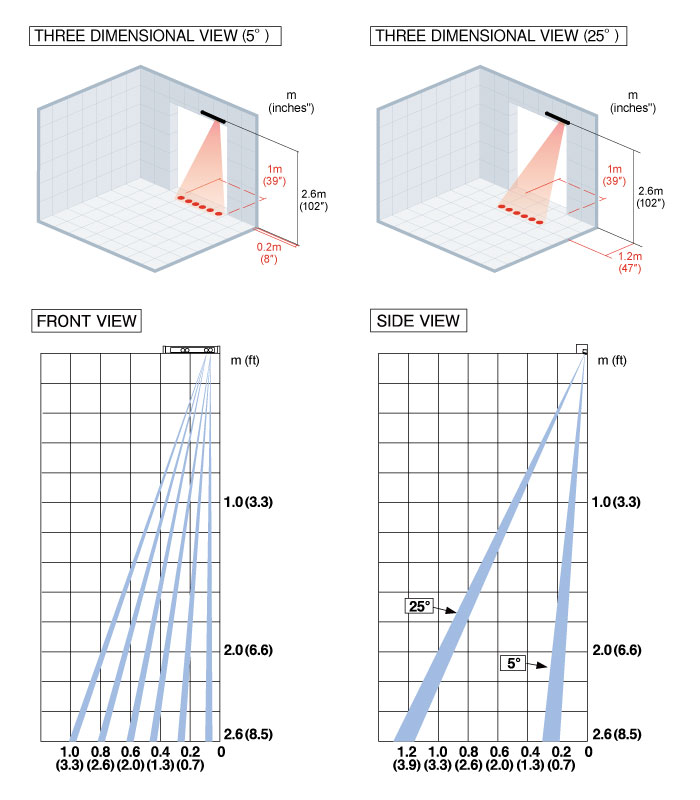

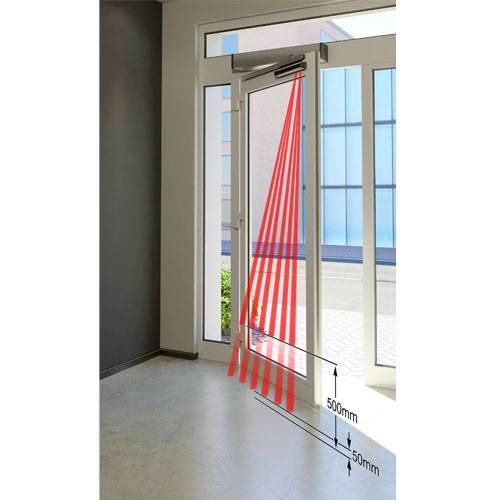

Detection Area

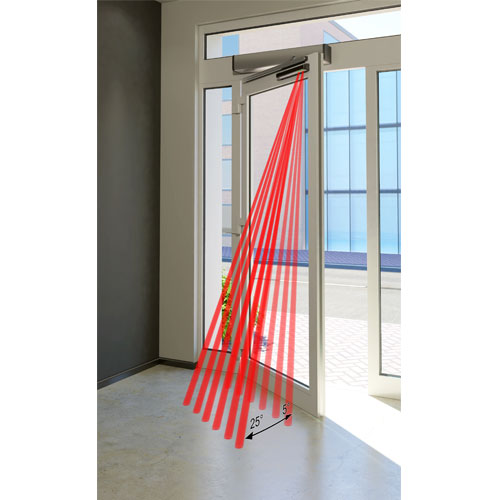

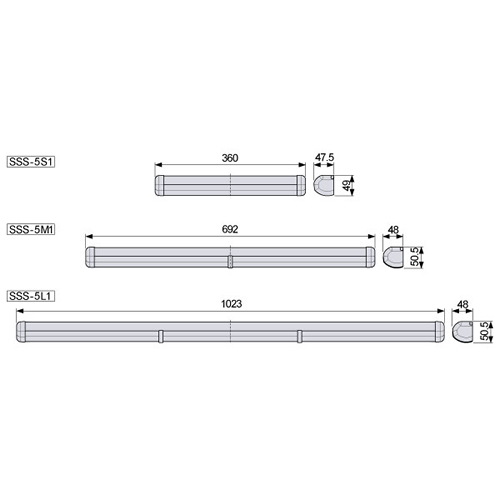

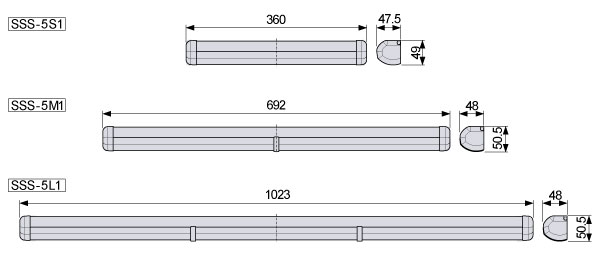

External Dimensions [mm]
Specifications
can see in the scroll.
| Model | SSS-5 Monitored Swing Door Safety Sensor | |
|---|---|---|
| Detection Method | Infrared Presence Detection with P.S.D. distance measurement | |
| Installation Height | 2.8m (9.18ft) Max | |
| Pattern Adjustment | Beam Angle Adjustment : 5° / 10° / 15° / 20° / 25° Detection Distance Adjustment : Dead Zone, 50-500mm |
|
| Detection Range | 0 ～ 2.75m (0 ～ 9.02ft) | |
| Frequency | 2 Frequencies (Dip Switch) | |
| Presence Timer | ∞ | |
| LED Indication | Standby : Green Detecting : Red Leading Edge Spot 1 Detect : Fast Flashing Red Hinge Side Outer Spot Detect : Slow Flashing Red Internal Sensor Error : Flashing Green/Red |
|
| Power Supply | AC/DC 12 ~ 24V ±10% | |
| Power Consumption | AC12V : 1.7VA, AC24V : 2.3VA (per each PCB unit) DC12V : 95mA, DC24V : 55mA |
|
| Output | DC 50V 0.1A Non Voltage 1C | |
| Test Input | 6mA Max. at 24VDC | |
| Output Holding Time | Approx. 0.5s | |
| Response Time | Below 0.1s | |
| DIP Swtich Functions | Test Input: 1 BI T Optical Interference: 1 B IT Relay Output Mode: 1 B IT Masking Detection Spots: 2 B IT Detection Range: 3 BIT |
|
| Operating Temperature | -20°C ~ +60°C, (-4°F ~ +140°F) | |
| IP Rating | IP54 | |
| Sensor Dimensions | SSS-5S1: 360mm (W), 49mm (H), 47.5mm (D) SSS-5M1: 692mm (W), 50.5mm (H), 48mm (D) SSS-5L1: 1,023mm (W), 50.5mm (H), 48mm (D) |
|
| Weight | SSS-5S1 : Approx. 380g (0.84 lbs) SSS-5M1 : Approx. 570g (1.25 lbs) SSS-5L1 : Approx. 770g (1.70 lbs) |
|
| Color | BL : Black | |
| Accessories Provided | Mounting Screws, Installation Instructions, Wire Sheath, Jamb Hole Covers | |
