Activation + Safety Infrared Sensor
3H-IR14C(EN16005)(Successor model of HR94D1-C1)

Cost efficient door opening & pedestrian safety in one compact sensor.
3H-IR14C is further enhanced Row 1 detection (12 spots), is made communication with controller possible and is improved dust & water proof.

*EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.

*For Users of HR94D1-C1, Hotron recommends the replacement to 3H-IR14C since HR94D1-C1 is discontinued.


Active Infrared Sensor

Active Infrared sensors take a snap shot of the reflection levels from the ground. Any change in the properties of the reflected wave will indicate that a person or object is in the detection area.

Useful functions

Click here to learn
more about icons
  • Infrared
  • Presence Detetion
  • Full Color LED
  • Snow Mode
  • Self Diagnosis
  • Waterproof
  • Activation + Safety
  • Small Stores
  • Transportation
  • Medical
  • Public
  • Food Service
  • Museums
  • Office Buildings
  • Entertainment
  • Residence



  • Smallest sensor on the market that offers EN16005 compliant automatic door activation combined with pedestrian safety

Pedestrian Safety

  • Dense and reliable curtain of safety beams focused directly in front of the moving door with a factory set presence timer setting of 30s


  • Intelligent software along with internal sensor self monitoring ensures safe and reliable operation in all installation environments
3H-IR14C  Detection Area
3H-IR14C Installation Image

Installs in Minutes

  • Set the safety zone in front of the sliding door and change only two dip switch settings for full compliance to European automatic door norms EN16005

*EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.

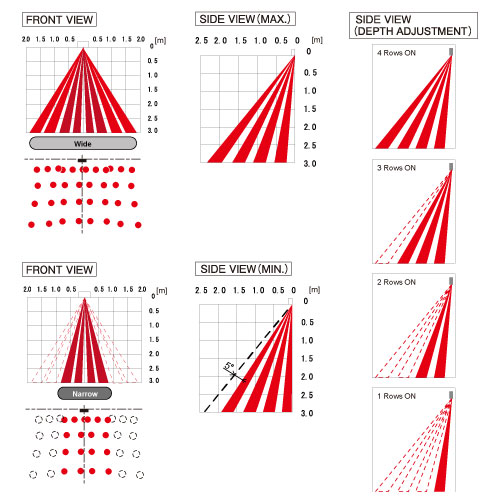

Detection Area

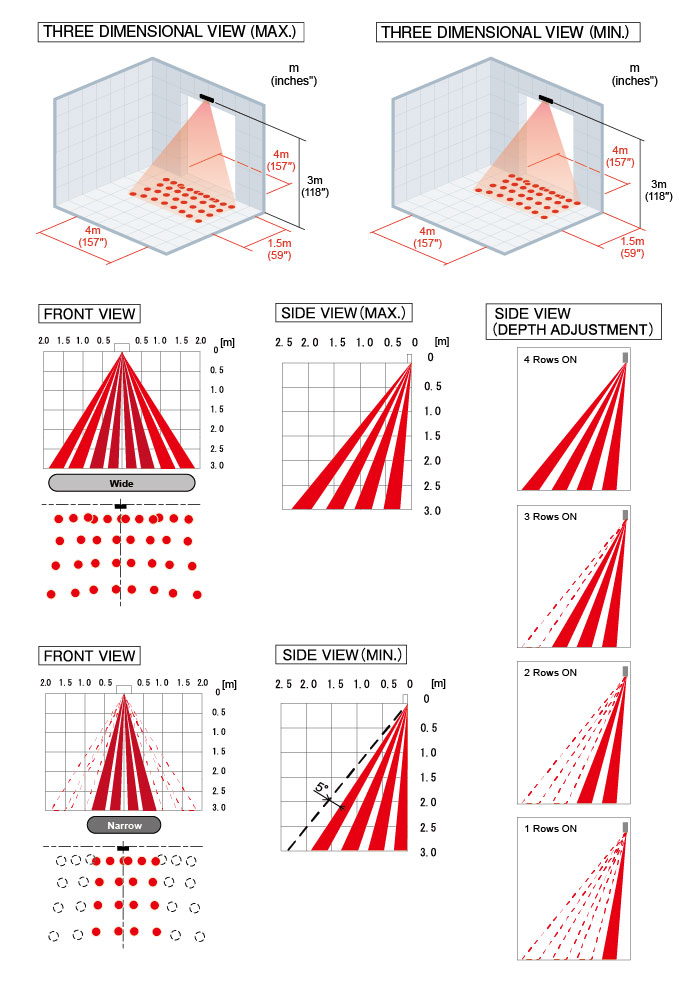

3H-IR14C Detection Area

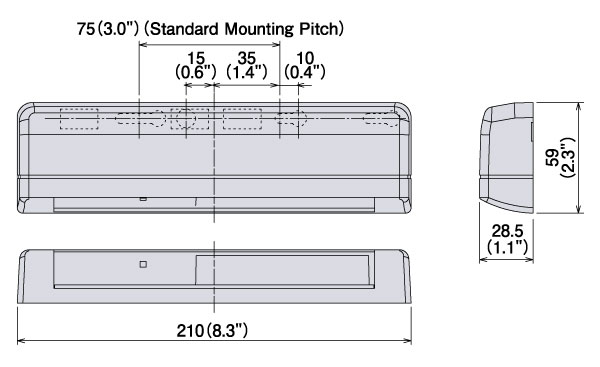

External Dimensions [mm(inches")]

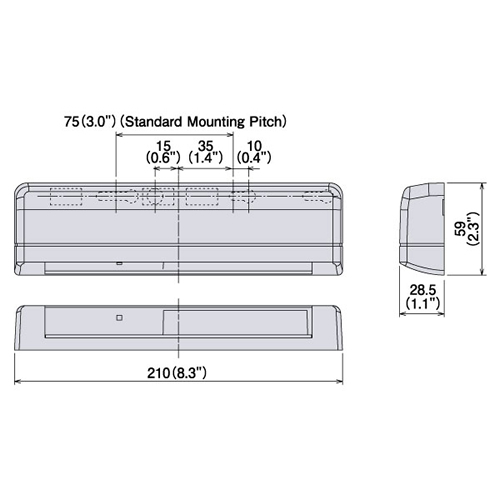

External Dimensions


can see in the scroll.

Model 3H-IR14C
Detection Method Active Infrared Reflection
Category Category 2 , Performance Level D according to EN ISO 13849-1:2008
Installation Height 3.0m (9.84ft) Max
Sensitivity Adjustment Available (Potentiometer)
Depth Adjustment Angle : 0° / +5°
Row : R1 ~ R4
Width Adjustment Wide / Narrow
Frequency 2 Frequencies
Presence Timer R1 , R2 : 2s / 30s / 60s / ∞
R3 , R4 : 2s fixed
Monitor Mode Normal / Snow
LED Indication Standby : Green
Row4 Detecting : Bule
Row3 Detecting : Red
Row2 Detecting : Slow Flashing Red
Row1 Detecting : Fast Flashing Red
Door Hunting : Orange
Indicates a change of dip switch settings : Fast Flashing Orange
Internal Sensor Error : Fast Flashing Green/Red
Reflected infrared signal from the floor is very low : Slow Flashing Green/Red
Power Supply AC/DC 12 ~ 24V ±10%
Power Consumption AC12V : 1.1VA Max, AC24V : 1.3VA Max
DC12V : 70mA Max, DC24V : 40mA Max
Output Safety(R1,R2) Form A Relay Contact
DC50V 0.1A (Resistance Load)
Safety(R2,R3,R4) Form A Relay Contact
DC50V 0.1A (Resistance Load)
Test Input DC24V : 6mA Max
Output Holding Time Approx. 0.5s
Response Time Approx. 0.1s ~ 0.2s
Operating Temperature -20°C ~ +60°C, (-4°F ~ +140°F)
Operating Humidity Below 80%
IP Rating IP54
Sensor Dimensions 210mm (W), 59mm (H), 28.5mm (D)
Weight Approx. 180g (0.40 lbs)
Color BL : Black
Accessories Provided Cable, Mounting Screws 2pcs, Mounting Template, Installation Instructions
