HTP-20
Active Infrared Beam Sensor
HTP-20
A single or dual set of infrared beams available.
Beam Sensor
Beam sensor detects persons and objects when the amount of light is reduced for blocking by persons and objects.
Useful functions
Location
more about icons
Features
Presence Detection
Beam sensor consisting of a controller and a single or dual set of infrared beams
No need to use tools for wiring connection with compact controller
Available to select penetration set-up or direct reflection set-up by setting switch
Blink (under penetration setting), ON or OFF of LED tells you about the most suitable setting of volume adjustment by microcomputer control

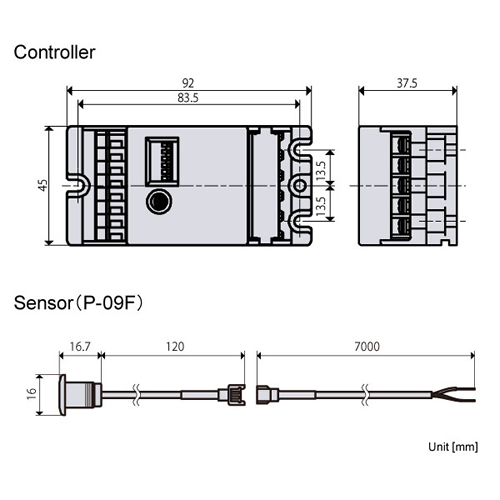

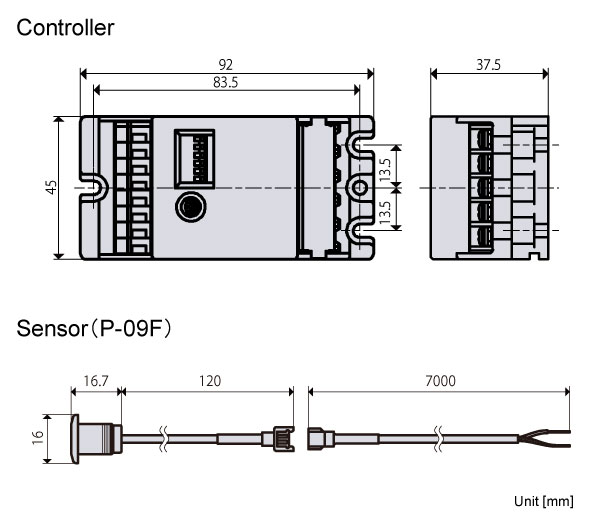

External Dimensions [mm]
Specifications
can see in the scroll.
| Model | HTP-20C / HTP-20E | |
|---|---|---|
| Detection Method | Active Infrared Detection | |
| Max Detection Distance | Penetration Set-up : 7m Direct Reflection Set-up : 1m (When object is white.) |
|
| Presence Timer | Penetration Set-up : 0.2s / 0.5s Direct Reflection Set-up : 0.2s / 0.5s / 1.5s / 3s |
|
| LED Indication | Penetration Set-up | Standby : Light ON Improper Sensitivity : Light Flashing Detecting : Light OFF |
| Direct Reflection Set-up | Standby : Light ON Detecting : Light OFF |
|
| Power Supply | [HTP-20E] AC 110V ±10% [HTP-20C] AC/DC 12 ~ 24V ±10% |
|
| Power Consumption | [HTP-20E] 3.0VA Max [HTP-20C] AC12V : 1.5VA, AC24V : 3.0VA DC12V : 70mA, DC24V : 70mA |
|
| Output | Relay Contact 1c 50V DC 0.1A (Resistance Load) | |
| Response Time | Approx. 0.1s | |
| Operating Temperature | -20°C ~ +55°C, (-4°F ~ +131°F) | |
| Weight | Approx. 90g (Controller) | |
| Composition | Controller : 1unit Transmitting & Receiving Sensor : 1pair / 2pairs |
|
| Accessories Provided | Controller Fixing Screw : 2pcs. Sensor Holder : 2pcs. for single set of beams, 4pcs. for dual set of beams |
|
