SSR-3

TOP > TOP > Products > Sliding Door > SSR-3

Infrared + Microwave Sensor

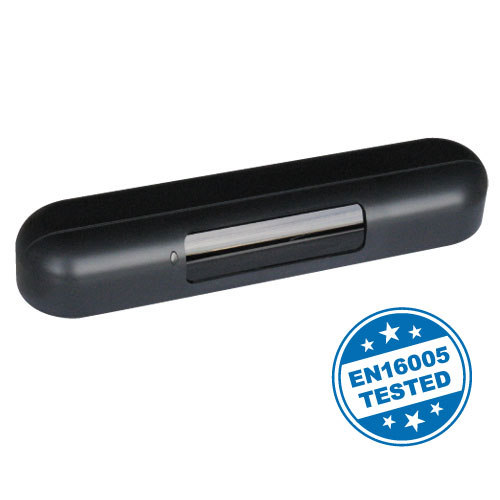

SSR-3 (EN16005)

A uni-directional long range detection sensor with monitored safety

*EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.

Combined Sensor

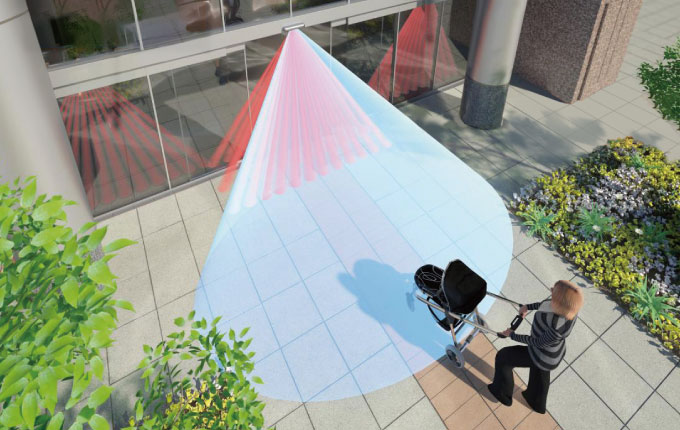

Combined technology sensors look to capitalise on the merits of both infrared and microwave technology. Microwave allows for the detection of a fast moving traffic and Infrared can detect static presence.

Useful functions
Location

Click here to learn
more about icons
  • Infrared
  • Microwave
  • Doorway Monitoring
  • Presence Detetion
  • Full Color LED
  • Energy Efficiency
  • Snow Mode
  • Self Diagnosis
  • Waterproof
  • Direction Detection
  • Activation + Safety
  • Large-scale Commercial Facilities
  • Small Stores
  • Transportation
  • Medical
  • Public
  • Food Service
  • Museums
  • Office Buildings
  • Entertainment
  • Residence

Function

  • Energy Efficient
  • Unparalleled Pedestrian Safety
  • Large Detection Zone
  • Ease of Installation

Features

Installation Height : 3.2m (10.50ft) Max

Depth Adjustment

  • Active Infrared 3 rows -8° ~ +4° (Screw)
  • Microwave Antenna Adjustment up/down +15° ~ +45° in 3° steps
  • Microwave Sensitivity Adjustment (Potentiometer)

Width Adjustment : Active Infrared Wide / Narrow (Area Mask)

Presence Timer : 2s / 30s / 60s / ∞ (Active Infrared 3 rows)

IP Rating : IP54

Power Supply : AC/DC 12 ~ 24V ±10%

Output Holding Time

  • Active Infrared : Approx. 0.5s
  • Microwave : Approx. 1.5s

*EN16005 is the regulations of power operated pedestrian door sets in all CEN member countries.

Detection Area [m(ft)]

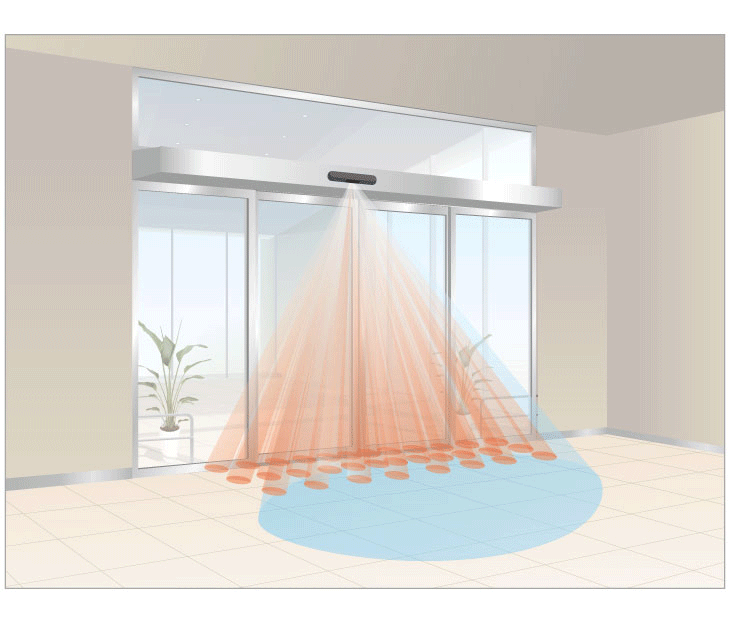

Detection Area

External Dimensions [mm(inches")]

External Dimensions

Specifications

can see in the scroll.

Model SSR-3 Dual Relay Output Pedestrian Door Activation + Monitored Safety
Detection Method Microwave Motion Detection 24GHz band + Active Infrared Detection
Installation Height 3.2m (10.50ft) Max
Sensor Dimensions 265mm (W), 60mm (H), 43mm (D)
Depth Adjustment Active Infrared 3 rows -8° ~ +4° (Screw)
Microwave Antenna Adjustment up/down +15° ~ +45° in 3° steps
Microwave Sensitivity Adjustment (Potentiometer)
Width Adjustment Active Infrared Wide / Narrow (Area Mask)
Response Time 0.1s ~ 0.2s
Presence Timer 2s / 30s / 60s / ∞ (Active Infrared 3 rows)
Frequency 4 Frequencies (Dip Switch)
Monitor Mode Normal / Snow (Dip Switch)
Doorway Learn ON / OFF (Dip Switch)
Direction Detection ON / OFF (Dip Switch)
Sensitivity Adjustment Available (Potentiometer)
LED Indication Standby : Green
Doorway Learning (When dip switch Y 5 is ON) : Green Blinking
Microwave Detecting : Blue
IR. Detecting / Microwave and IR. Detecting : Red
Detection row “ROW1”(“ROW2” when doorway Learning is turned ON) is detecting door movement : Orange
Indicates a change of dip switch settings : Orange Blinking (Fast)
Door Hold is turned ON (When dip switch Y 4 is ON) : Orange Blinking (Slow)
Internal Sensor Error : Green & Red Blinking (Fast)
Reflected infrared signal from the floor is very low : Green & Red Blinking (Slow)
Power Supply AC/DC 12 ~ 24V ±10%
Power Consumption AC12V : 2.5VA Max, AC24V : 2.5VA Max
DC12V : 150mA Max, DC24V : 80mA Max
Output IR. Opto Relay Non Polar
Voltage : 48VDC Max. Current : 300mA Max. (Resistor Load)
Microwave Form A Relay DC50V 0.1A (Resistor Load)
Test Input 6mA Max. @ 24VDC
Output Holding Time Active Infrared : Approx. 0.5s
Microwave : Approx. 1.5s
Operating Temperature -20°C ~ +60°C, (-4°F ~ +140°F)
Operating Humidity Below 80%
IP Rating IP54
Weight Approx. 260g (0.56 lbs)
Color S : Silver, BL : Black
Accessories Provided Cable, Mounting Template, Mounting Screws, Installation Instructions, Detection Area Mask
