HR400
High Mount Activation + Safety Door Sensor
HR400
Dense 60 spot curtain of infrared activation & safety at mounting heights of up to 4m.

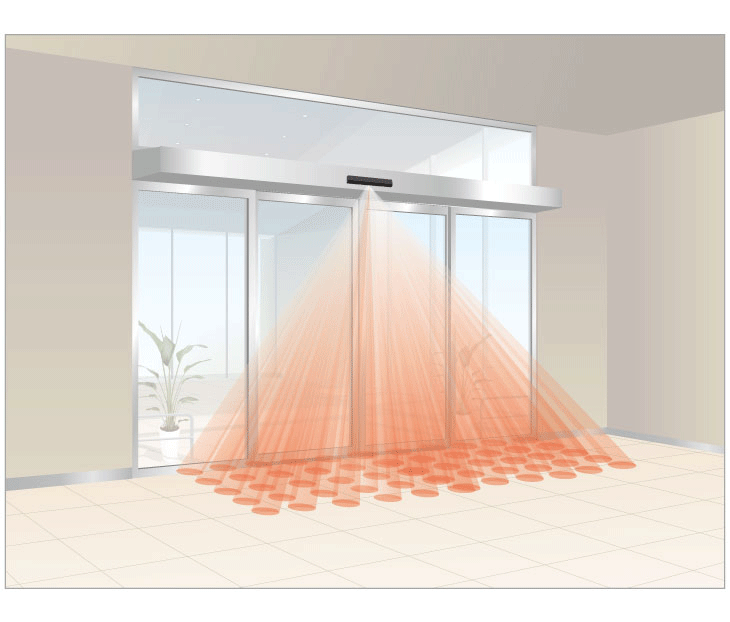

Active Infrared Sensor
Active Infrared sensors take a snap shot of the reflection levels from the ground. Any change in the properties of the reflected wave will indicate that a person or object is in the detection area.
Useful functions
Location
more about icons
Features
Mounting heights of up to 4m
Energy Efficient
Unparalleled Pedestrian Safety
Versatile
Ease of Installation

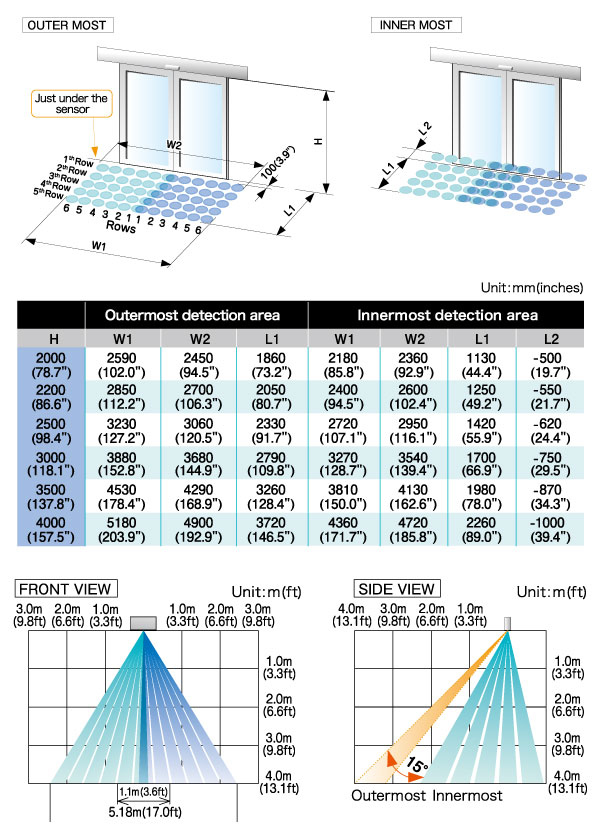

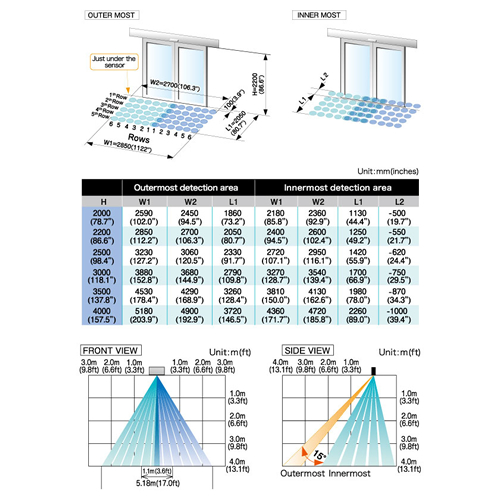

Detection Area

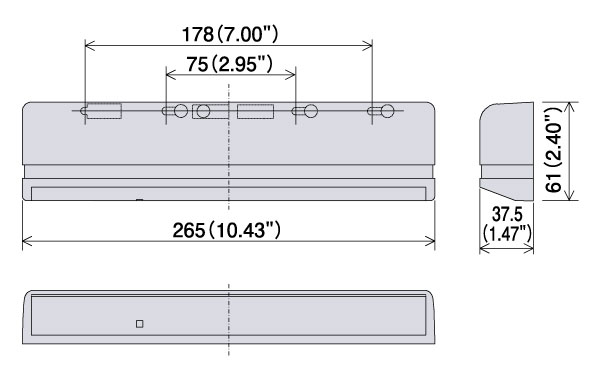

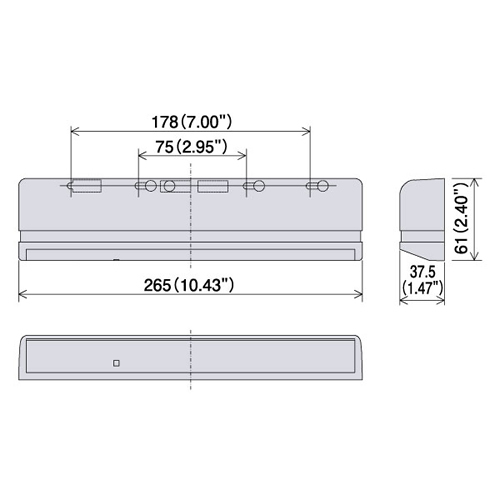

External Dimensions [mm(inches")]
Specifications
can see in the scroll.
| Model | HR400 High Mount Activation + Safety Door Sensor | |
|---|---|---|
| Detection Method | Active Infrared Detection | |
| Installation Height | 4.0m (13.12ft) Max | |
| Sensitivity Adjustment | Available (Potentiometer) | |
| Mounting Height Adjustment | 2m (6.6ft) ~ 2.5m (8.2ft) / 2.5m (8.2ft) ~ 3.0m (9.8ft) / 3.0m (9.8ft) ~ 3.5m (11.5ft) / 3.5m (11.5ft) ~ 4.0m (13.1ft) | |
| Depth Adjustment | Angle : Unit 0° ~ +15° (Depth Adjustment Screw Setting) Row : R2 ~ R5 (Dip Switch) |
|
| Width Adjustment | Detection Width Setting : Left & Right each 6rows / 4rows / 2rows (Dip Switch for Left & Right each) Detection Width Movement : Left & Right each 1 row movement (Width Adjustment Knob for each Left & Right) |
|
| Frequency | 4 Frequencies (Dip Switch) | |
| Presence Timer | 2s / 30s / 60s / ∞ | |
| Monitor Mode | Normal / Snow1 / Snow2 / Snow3 (Dip Switch) | |
| Doorway Learn | ON / OFF (Dip Switch) | |
| Direction Detection | ON / OFF (Dip Switch) | |
| LED Indication | Standby : Green Doorway Learning : Flashing Green Detecting : Red Door Hunting : Orange Indicates a change of dip switch settings or sensitivity volume : Flashing Orange Internal Sensor Error : Flashing Green/Red |
|
| Power Supply | AC/DC 12 ~ 24V ±10% | |
| Power Consumption | AC12V : 2.5VA Max, AC24V : 2.5VA Max DC12V : 140mA Max, DC24V : 65mA Max |
|
| Output | Form 1C Relay DC 50V, 0.1A (Resistance Load) | |
| Output Holding Time | Approx. 0.5s | |
| Response Time | Approx. 0.1s | |
| Operating Temperature | -20°C ~ +60°C, (-4°F ~ +140°F) | |
| Operating Humidity | Below 80% | |
| IP Rating | IP54 (With Base) | |
| Sensor Dimensions | 265mm (W), 61mm (H), 37.5mm (D) | |
| Weight | Approx. 290g (0.64 lbs) | |

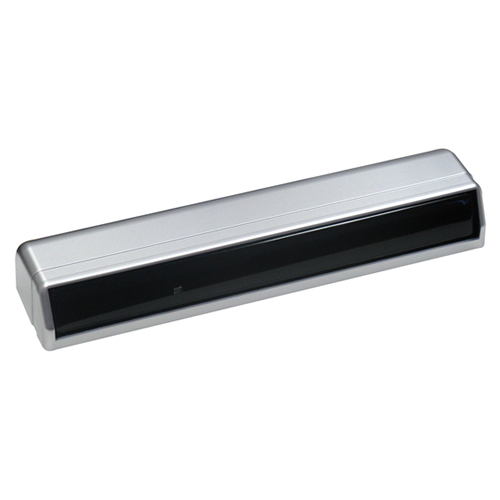

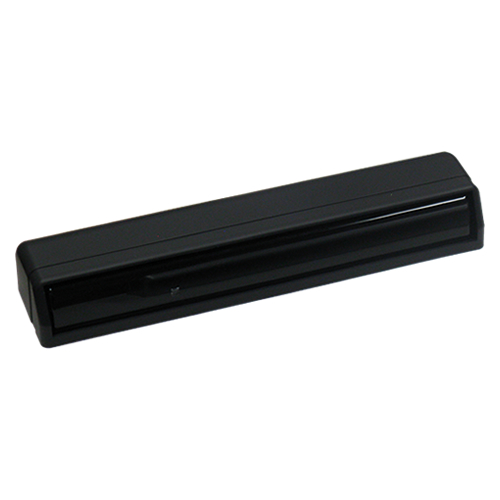

| Color | S : Silver, BL : Black | |
| Accessories Provided | Cable, Mounting Template, Installation Instructions | |
