HR100

TOP > TOP > Products > Sliding Door > HR100

Pedestrian Door Activation+ Safety (Single Relay)

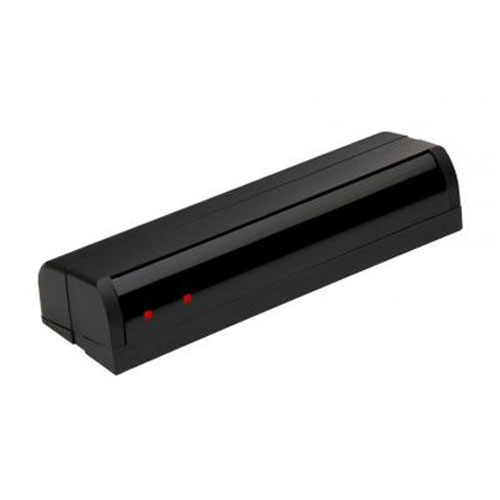

HR100

Combine long range automatic door activation with excellent pedestrian safety.

HR100_Technologies

Active Infrared Sensor

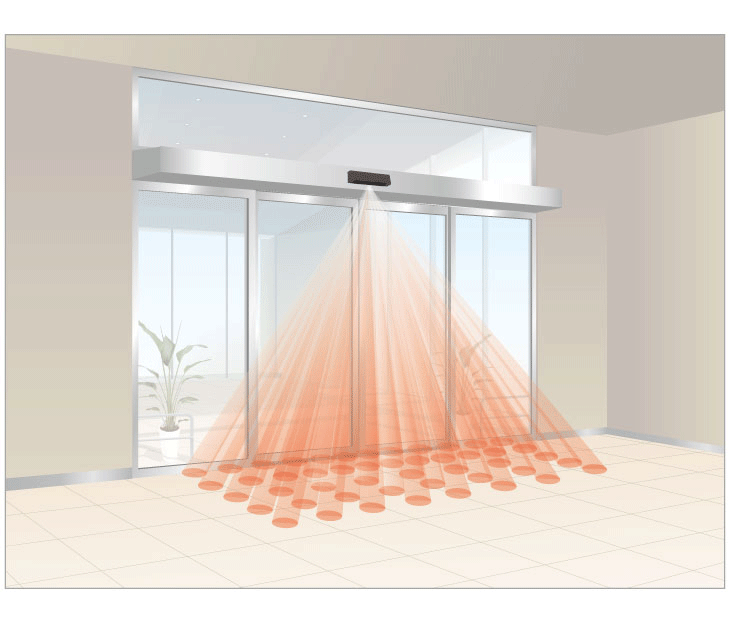

Active Infrared sensors take a snap shot of the reflection levels from the ground. Any change in the properties of the reflected wave will indicate that a person or object is in the detection area.

Useful functions
Location

Click here to learn
more about icons
  • Infrared
  • Presence Detetion
  • Flat(Internally Mounted)
  • Snow Mode
  • Waterproof
  • Activation + Safety
  • Large-scale Commercial Facilities
  • Small Stores
  • Transportation
  • Medical
  • Public
  • Food Service
  • Museums
  • Office Buildings
  • Entertainment
  • Residence

Features

Two Sensors in One

  • Guarantee optimum door usage efficiency through separate adjustment of door activation and pedestrian safety detection zones

Timely Door Opening

  • Guarantee immediate detection of fast moving trafficup to a detection distance of 2m from the door face
    *Installation height of 2.2m

Safety Beam Installation Optional

  • Eliminate the requirement for safety beams through separate relay outputs for activation and safety
    *Depending on door type and national regulations in force

Improved Pedestrian Safety

  • Enhance safety in front of the door close area with a focused 24 spot infrared safety curtain

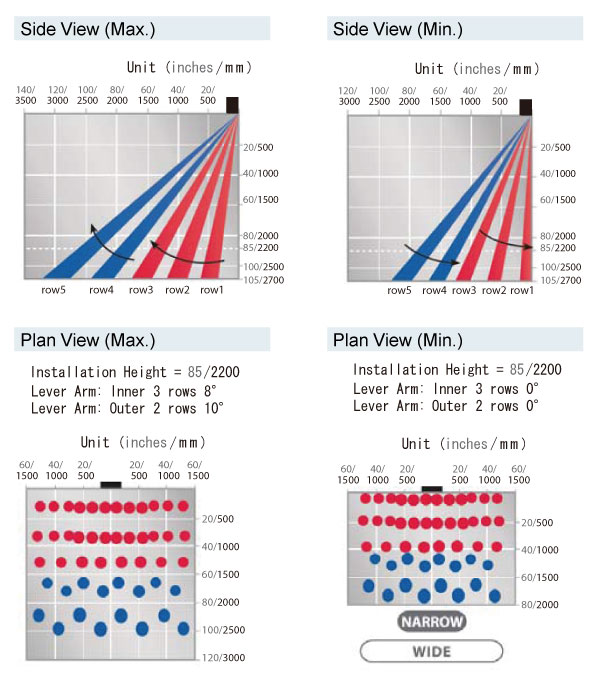

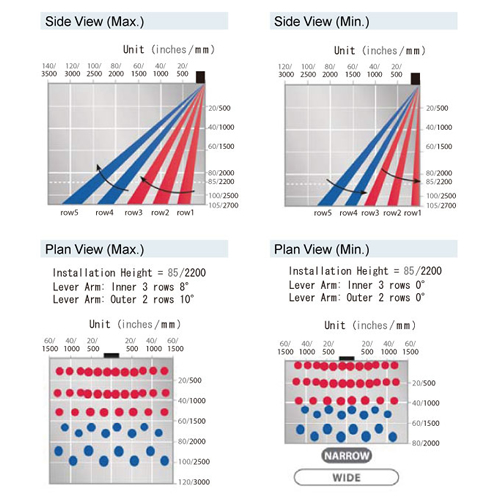

Detection Area [inches/mm]

Detection Area

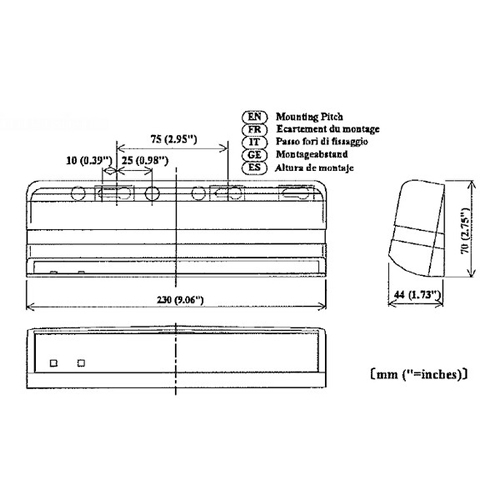

External Dimensions [mm(inches")]

External Dimensions

Specifications

can see in the scroll.

Model HR100 (Single Relay) Pedestrian Door Activation + Safety
Detection Method Active Infrared Detection
Installation Height 2.7m (9ft) Max
Sensitivity Adjustment Available (Potentiometer)
Depth Adjustment Inner 3 rows 0° ~ +8°
Outer 2 rows 0° ~ +10°
1 ~ 5 rows of detection (Dip Switch)
Width Adjustment Inner 3 rows Wide / Narrow
Outer 2 rows Wide / Narrow
Frequency 4 Frequencies (Dip Switch)
Presence Timer 2s / 15s / 60s / ∞ (Inner 3 rows)
2s & 15s (Outer 2 rows)
Monitor Mode Normal / Snow (Dip Switch)
LED Indication Standby : Green
Detecting : Red
Door Hunting : Orange
Power Supply AC/DC 12 ~ 24V ±10%
Power Consumption AC12V : 1.5VA Max, AC24V : 2.0 VA Max
DC12V : 80mA Max, DC24V : 50mA Max
Output Relay Contact 1c DC50V 0.1A (Resistance Load)
Relay is driven with “Fail Safe” concept
Output Holding Time Approx. 0.5s
Operating Temperature -20°C ~ +60°C, (-4°F ~ +140°F)
Operating Humidity Below 80%
IP Rating IP54
Sensor Dimensions 230mm (W), 70mm (H), 44mm (D)
Weight Approx. 250g (0.55 lbs)

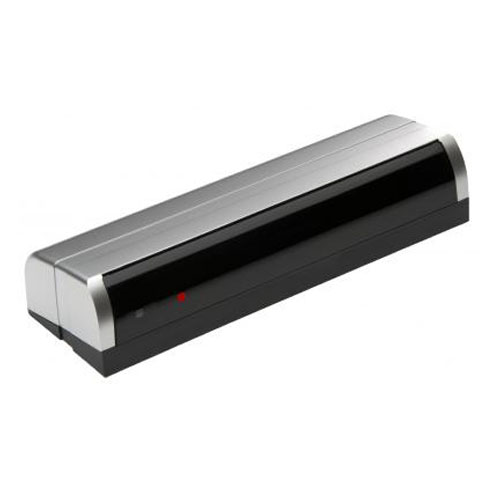

Color S : Silver , BL : Black
Accessories Provided Cable, Mounting Screws 2pcs, Mounting Template, Installation Instructions

Option

HA-120 Internal mounting bracket HR100

HA-120 Internal mounting bracket HR100

It is necessary HA-120 bracket for internal mounting at transom. HA-120 Internal mounting bracket at transom provide with stailish design.
